The JDMF series Coriolis Mass Flow Meter is a flagship, high-precision metering product from Jingda Instruments. Leveraging a mature structural design, cutting-edge measurement principles, and comprehensive qualification certifications, it is widely utilized in core applications such as custody transfer and marine fuel metering, offering a perfect balance of measurement accuracy and long-term operational stability.
Product Structure

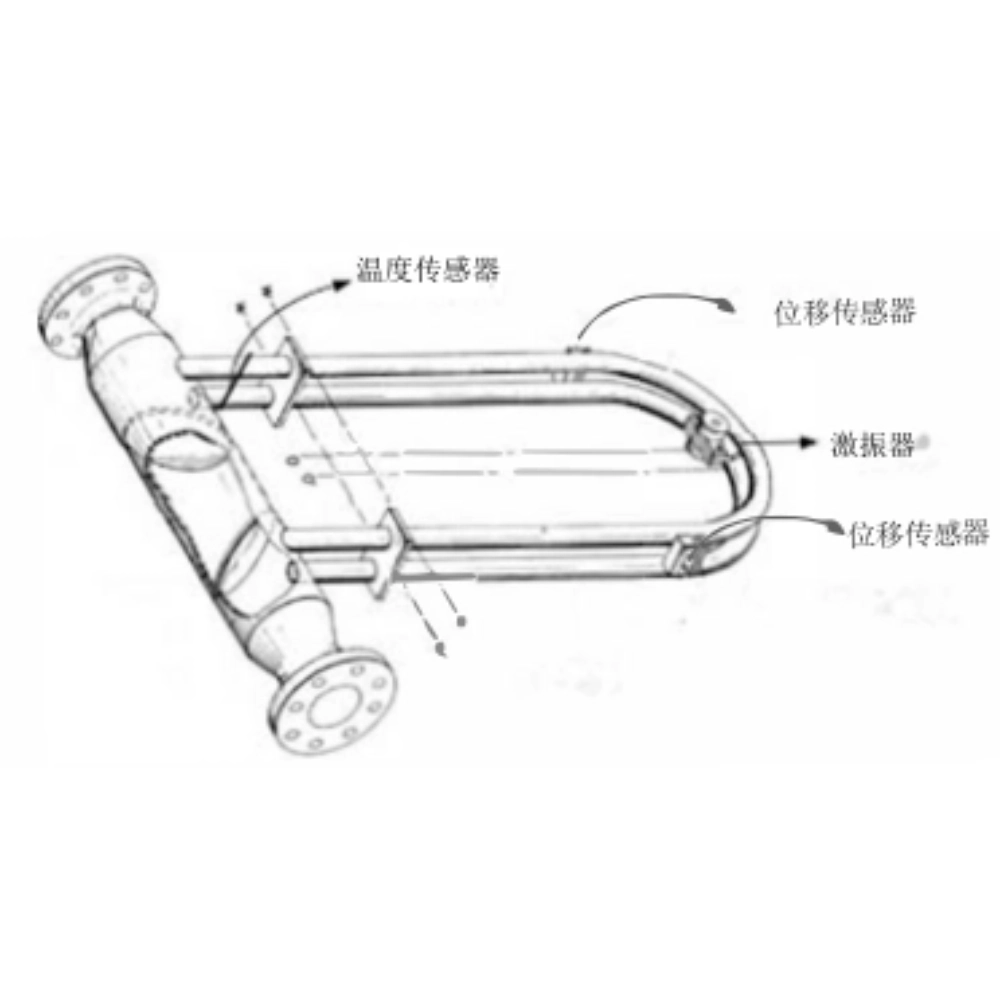

- Sensor (Detection Element): Equipped with built-in dual measuring tubes, an exciter, and displacement sensors. It is responsible for capturing physical signals and handling the acquisition and conversion of raw flow data.
- Transmitter (Converter): Serving as the data processing core of the equipment, it provides real-time displays of instantaneous and cumulative flow rates. It also supports parameter configuration, data storage, and remote communication transmission.
Precise Measurement Principle
The product relies on the Coriolis force principle to achieve precise metering while simultaneously calculating the medium’s density:

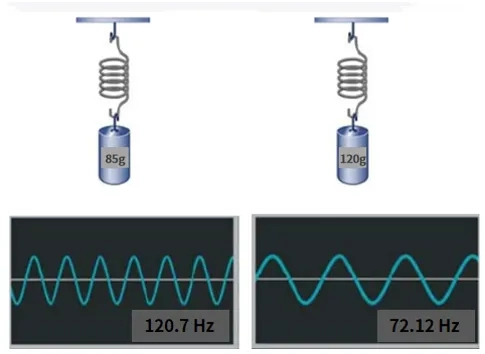

- Density Measurement: The resonant frequency of the measuring tube changes in response to the density of the fluid inside. By capturing these frequency variations, the flow meter accurately calculates the density value of the medium.

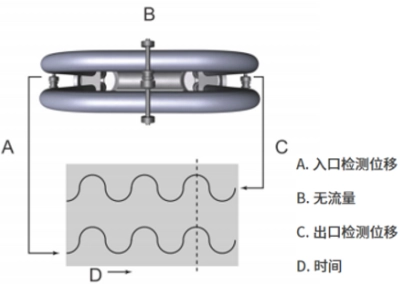

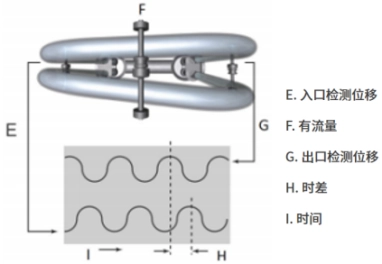

- Mass Flow Calculation: As the fluid flows through the vibrating measuring tubes, it generates a Coriolis force that creates a phase difference between the two sides of the tubes. This phase difference is directly proportional to the mass flow rate of the medium, thereby enabling high-precision mass flow calculation.
Comprehensive Specifications & Parameters
The product covers a wide range of pipe diameters from DN15 to DN150, with a maximum flow rate of up to 550 t/h and a maximum pressure resistance of 6.3 MPa. Featuring excellent zero-point stability, it is highly adaptable to a variety of complex working conditions in industrial fields.
Core Product Highlights
- Authoritative Certification & Reliable Metering: The entire series has obtained the Class 0.15 CPA (Pattern Approval of Measuring Instruments) and holds the Type Approval from CCS (China Classification Society). This fully meets the high-standard operational requirements for onshore custody transfer and marine fuel metering.
- Multiple Signal Outputs & Strong Adaptability: Comes standard with multiple output options, including 4-20mA, 0-10kHz pulse, and RS485. It can quickly integrate with various industrial control systems and can be expanded with wireless transmission modules to meet remote management needs.
- Simple Structure & Worry-Free Maintenance: Features explosion-proof capacitive buttons paired with a high-definition LCD screen for easy and convenient operation. There are no moving parts inside the measuring tubes, which ensures a very low operational failure rate and significantly reduces long-term maintenance costs.
Jingda Mass Flow Meters — Stable, Reliable, and Worry-Free.
Inquiries and orders are welcome!
